Brinkley Model Ix Travel Trailer RVs For Sale

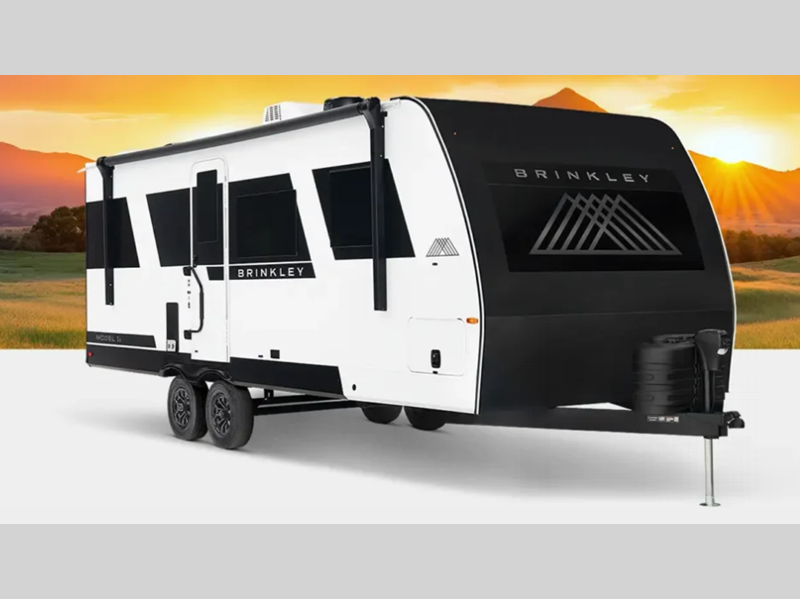

Brinkley introduces the new Model Ix premium half-ton towable travel trailer to their lineup! You'll enjoy a residential interior thanks to Brinkley's CraftSense building techniques, plus a Road Armor suspension for an overall better towing experience!
There is a seamless laminated aluminum exterior and a straight frame chassis for added durability. You will also love the square Euro frameless windows with blackout shades with reflective insulation, and the industry first low-maintenance roof. Inside there is premium residential cabinets with dovetail drawers, a one-piece fiberglass shower with neon LED marine lighting, and dimmable living room lights to name a few comforts.
Start a new adventure in a Model Ix travel trailer by Brinkley!
-
Model Ix 23
Brinkley Model Ix travel trailer 23 highlights: Front Semi-Private Bedroom ... more about Model Ix 23
Specifications
Sleeps 2 Slides 1 Length 26 ft 11 in Ext Width 8 ft Ext Height 10 ft 5 in Int Height 6 ft 6 in Hitch Weight 526 lbs GVWR 7495 lbs Dry Weight 5771 lbs Fresh Water Capacity 46 gals Grey Water Capacity 45 gals Black Water Capacity 45 gals Tire Size 205/75R14 Furnace BTU 30000 btu Available Beds Queen Refrigerator Size 10 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" x 30" Number of Awnings 1 Axle Weight 3500 lbs LP Tank Capacity 20 lbs Water Heater Type Tankless On Demand AC BTU 18000 btu TV Info LR 40" Smart TV Awning Info 17' Axle Count 2 Number of LP Tanks 2 Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Model Ix 20x
Brinkley Model Ix travel trailer 20x highlights: Front Hidden Bed System ... more about Model Ix 20x
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Slides 1 Length 23 ft 11 in Ext Width 8 ft Ext Height 10 ft 10 in Int Height 6 ft 6 in Hitch Weight 525 lbs GVWR 7395 lbs Dry Weight 5583 lbs Fresh Water Capacity 46 gals Grey Water Capacity 45 gals Black Water Capacity 45 gals Tire Size 205/75R14 Furnace BTU 30000 btu Available Beds Murphy Bed Refrigerator Type 12V Refrigerator Size 10 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" x 30" Number of Awnings 1 Axle Weight 3500 lbs LP Tank Capacity 20 lbs Water Heater Type Tankless On Demand AC BTU 18000 btu TV Info LR 40" Smart TV Awning Info 16' Electric w/LED Lighting Axle Count 2 Number of LP Tanks 2 Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Model Ix 23x
Brinkley Model Ix travel trailer 23x highlights: Front Semi-Private Bedroom ... more about Model Ix 23x
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Slides 1 Length 26 ft 11 in Ext Width 8 ft Ext Height 10 ft 10 in Int Height 6 ft 6 in Hitch Weight 526 lbs GVWR 7495 lbs Dry Weight 5771 lbs Fresh Water Capacity 46 gals Grey Water Capacity 45 gals Black Water Capacity 45 gals Tire Size 205/75R14 Furnace BTU 30000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 10 cu ft Convection Cooking Yes Cooktop Burners 3 Shower Size 36" x 30" Number of Awnings 1 Axle Weight 3500 lbs LP Tank Capacity 20 lbs Water Heater Type Tankless On Demand AC BTU 18000 btu TV Info LR 40" Smart TV Awning Info 17' Electric w/LED Lighting Axle Count 2 Number of LP Tanks 2 Shower Type Standard Electrical Service 30 amp Similar Floorplans
Take a Virtual Tour
Model Ix Features:
Standard Features (2026)
Chassis & Suspension
- Brinkley Spec & Certified Straight Frame Chassis
- Road Defense Triple Powder Coated Chassis Premium Hankook Vantra 205/75 Load Range D 8-Ply Tires 14" Custom Aluminum Luxury Wheels
- Galvanized Wheel Well Shields for Road Debris Drum Brakes
- Power Tongue Jack w/ LED Illumination
- 4-Point Manual Stabilizer Jack System
- High-Performance Road Armor™ Suspension Equalizer System
- Heavy Duty 3,500 lbs. Axles
- Reinforced Axle Hangers
- Demco EZ Latch Trailer Coupler
- Upgraded 6' Coiled Breakaway Safety Cable
- 2" Rear Cargo Receiver Hitch (300 lbs. Capacity)
Exterior & Storage
- Seamless Laminated Aluminum Exterior
- Euramax StrongLite Laminated Aluminum
- Automotive-Grade Paint
- UV Protected for a Lasting Finish
- Square Euro Frameless Windows w/ Up To 6" Openings (Industry 1st)
- Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics
- TuffCoat Protective Epoxy (Front Cap)
- Extended Front Rock Guard Protective Shield
- Front Dotless COB Neon LED Docking Lights
- Electric Awning w/ LED Lighting
- Slide-Out Topper Ready
- Backup/Security Furrion Camera Prep
- Winegard Air 360+ TV & FM Antenna w/ Wi-Fi Booster (Gateway Ready)
- Front Pass-Through Storage Compartment: SO Hot Feature Icon Round
- Full-Width LED Strip Lighting
- 2x Power Outlets
- Forced-Air Heated & Insulated
- Tough-Ply Floor (Gray)
- Thick Bulkhead Walls (Designed For Mounting & Securing Items)
- Slam Latch Baggage Doors
- Exterior Ladder w/ Secure Transition
- Exterior Camp-Side Outlets
- Deluxe Entrance Package:
- 28"x72" Entry Door w/ Window & Shad
- Lightweight Solid Entry Steps
- Child/Pet Defender Screen Protector
- Large Folding Entry Grab Handle
Solar, Electric & HVAC
- 200-Watt Solar Panel (400 Watt Ready)
- 30 Amp Victron MPPT Solar Controller (400W Solar & Lithium Ready)
- Inverter Prep
- 18k BTU Furrion Chill Cube Air Variable Speed Conditioner (Main)
- Brinkley Smart-Command™ Center w/ App Control
- Thermaflex® No Kink No Tear Heat Ducts SO Hot Feature Icon Round
- Travel, Storage, & Solar Mode Battery Disconnects
- Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
- 30k BTU High-Capacity Furnace
- 30-Amp Electric Service
- Detachable 30-Amp Power Cord w/ Angled Connector
Plumbing & LP
- Brass Plumbing Fittings (Industry First)
- Water Shutoff Valve on ALL Fixtures
- Extended Waste Hose Carrier Storage Tube
- Clear "No Surprises" Sewer Cap w/ Lanyard
- Brinkley On-Command™ Docking & Utility Center
- EZ Winterization Valve in Utility Center
- Hot/Cold Exterior Spray Port (Off-Campside)
- Tankless On-Demand Water Heater
- Dual 20-Gallon LP/Propane Tanks w/ Cover
- LP-IQ Propane Gauge
- Exterior LP Quick Connect
Interior & Living Spaces
- Brinkley CraftSense™ Wood Trim Construction
- 68.75" Slide Out Height
- Slide-In Access: Refrigerator, Bathroom, Bedroom
- Window Integrated Blackout Shades w/ Reflective Insulation + Full Bug Screens
- Dimmable Living Room Lights
- 40? Smart TV w/ Articulating Mount
- Entertainment Wall Storage Cabinets
- SoundCore Boom Bluetooth Portable Waterproof Speaker w/ Travel Bracket
- 62" Wall Hugger Theater Seating w/ 2 Recliners (Optional)
- Trifold Sofa w/ Scotchgard Protection (52"x70" Sleeper)
- 60" Roll Over Sofa w/ End Tables/Nightstands (N/A 23x)
- Well-Placed Outlets w/ USB & USB-C High-Speed Charging Stations
- Floor-to-Ceiling Entry Closet w/ Hanging Storage & Drawers (N/A 20x)
- Wall Coat Hooks
- Pet-Friendly Package:
- 100% Carpet Free
- Limited Floors Ducts
- Child/Pet Defender Screen Protector
Kitchen & Dining
- Premium Residential Drawers w/ Dovetail Joints
- Residential Thermofoil Kitchen Countertop
- Pull-Out Dining Table w/ Utensil + 2x Drawers (2 Positions, Seats up to 4)
- 2x Folding Chairs w/ Storage Bag
- Pull-Out Trash Bin w/ Utility Storage
- Stow 'n Go Paper Towel Caddy
- Magnetic Cabinet & Drawer Catches
- Dishwasher Prep
- Large Pantry w/ Pull-Out Drawers & Appliance Outlet
- 10 cu.ft. Energy Efficient 12-Volt Refrigerator
- 3-Burner Stovetop
- Residential 30" Convection Microwave
- Large Farmhouse Stainless Steel Sink w/ Tuff Coat & Roller Cover
- Maxxair Fan w/ Rain Sensor
Bathroom
- Marine Grade Dotless COB Neon LED Shower Lighting
- Space Saving Bathroom Pocket Door
- Stainless Steel Sink w/ Tuff Coat
- Glass Sliding Shower Door
- One-piece 36"x30" Molded Fiberglass Shower
- Residential Shower System w/ Head & Handheld Sprayers
- Overhead Shower Cove
- Porcelain Toilet
- Maxxair Fan w/ Rain Sensor
Bedroom
- Queen Bed w/ Residential 7" Memory Foam Bamboo Mattress (60"x80") (23x)
- Brinkley Feather-Lift™ Hidden Bed System (20x)
- Queen Bed w/ Residential 7" Feather Topper Mattress (60"x78") (20x)
- Dual Bedside Nightstands w/ Cubbies & Outlets w/ USB & USB-C Charging Ports (CPAP Ready)
- 2x Storage Drawers (Under Sofa) (20x)
- 4x Storage Drawers (Under Bed) (23x)
- Matching Comforter & 2 Pillow Package
- Dual Reading Sconce Lights w/ USB Charging
- Dual Floor-to-Ceiling Wardrobes w/ Clothing Rod & Drawers
- Overhead Storage Cabinets
- Room Divier (23x)
Construction
- Brinkley Automotive Exterior Seals Package!
- Low-Maintenance Roof (Industry First)
- Developed by Campers with Customer Feedback
- Basement Utility Access w/ Removable Sliding Doors & Motion Activated Lights
- Automotive-Style Riveted Wheel Skirts & Panels
- Euramax StrongLite Laminated Aluminum Exterior Walls w/ Azdel Composite w/ 3-Year Warranty Covering Color & Gloss Retention
- Reinforced & Walkable Slide Roofs
- Thermaflex® No Kink No Tear Heat Ducts
- Pre-Engineered & Assembled Wiring Harnesses, Loomed, Labeled, & Color Coded for Easy Serviceability (Segment-First)
- Water Shutoff Valve on ALL Fixtures
- Brass Plumbing Fittings (Segment First)
- Industry Best Insulation Package:
- R40 Roof, R9 Walls, R40 Floor Insulation
- Double Insulated Roof, Front Cap, & Main Floor
- Heated & Enclosed Underbelly (Circulated Forced Air)
- Insulated Slide-Out Floors
- Every Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process:
- Industry Leading 350+ Point Inspection & Testing Process
- Off-Road Simulation Tested (Industries Exclusive)
- Complete Unit Pressure Test (Seals, Gaskets, Slide-Out, Etc.)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
